Samsung Odyssey OLED G8 (G80SD) 32" QD OLED 3840x2160 Mega DCR 0.03ms 400cd DP HDMI pivot smart 240Hz AI
Kód: LS32DG802SUXDUPodrobný popis
General InformationCabinet Basic Code S32DN0
Series G
Series Name MON G80SD
Platform(Monitor) SOC | RoseP
Display
Screen Size (class) 32
Real Inch N/A
Real cm N/A
Flat / Curved Flat
Screen Curvature N/A
Aspect Ratio 16:9
Panel Type OLED
Brightness(Typ.) 250 cd/?
Peak Brightness(Typ.) 400 cd/?
Brightness(Min.) 200 cd/?
Peak Luminance Ratio N/A
Contrast Ratio 1,000,000:1
Dynamic Contrast Ratio Mega DCR
HDR VESA DisplayHDR True Black 400
HDR10+ HDR10+ Gaming
Mini LED Local Dimming N/A
Resolution 4K (3,840 x 2,160)
Response Time (ms) 0.03ms(GTG)
Viewing Angle 178°(H)/178°(V)
Color Support (16.7M/1B) Max 1B
Color Gamut (NTSC) N/A
Color Gamut (sRGB Coverage) N/A
Color Gamut (DCI Coverage) 99% (CIE1976)
QLED Yes
Matte Display Yes
OLED Glare Free Yes
Refresh Rate (Hz) Max 240Hz
Refresh Rate Range (Vertical) 48~240hz
Refresh Rate Range (Horizontal) 140.88 ~ 565.44 kHz
Active Display Size (HxV) 699.48 (H) x 394.73 (V)
Pixel Pitch (HxV) 181.4 x 181.4
Pixel Per Inch(PPI) 140ppi
Applicable maximum pixel frequency 240Hz
Sub Pixel N/A
Calibration
Factory Calibration Yes
Gray Balance N/A
Screen Uniformity N/A
Factory Report Yes
Features
Eco Saving Plus N/A
Save Energy N/A
Picture-in-Picture N/A
Picture-by-picture N/A
PBP Setting N/A
Daisy Chain N/A
Picture Size Yes
Embeded POP N/A
OS Compatiblity Windows, Mac
Windows Certification Windows 11
0.00 W Off mode N/A
Eye Saver Mode Yes
Flicker Free Yes
Input LAG N/A
Off Timer Plus Yes
USB Firmware Update Yes
HDMI-CEC Yes
Auto Source Switch Auto Source Switch+
Default Off
Touch Screen N/A
Adaptive Picture Yes
Best Brightness Yes
Accessbility Yes
Quick Access N/A
Product registration (QR Code) N/A
KVM Switch N/A
Game Feature
FreeSync FreeSync Premium Pro
FreeSync Range 48~240
G-Sync N/A
G-Sync Range N/A
VESA Adaptive-Sync N/A
Adaptive-Sync Range N/A
Black Equalizer N/A
Dynamic Black EQ Yes
Virtual AIM Point Yes
Refresh rate Optimizer N/A
Range N/A
Super Arena Gaming UX N/A
CoreSync Yes
Eclipse Sync N/A
Super Ultra Wide Game View Yes
Resolution 3,840 x 1,600
Refresh Rate 240Hz
Auto Game Mode (ALLM) Yes
Game Motion Plus Yes
Surround Sound Yes
Game bar Yes
Minimap zoom Yes
HGiG Yes
Gaming Hub Yes (KR, US, CA, BR, GB, FR, DE, IT, ES)

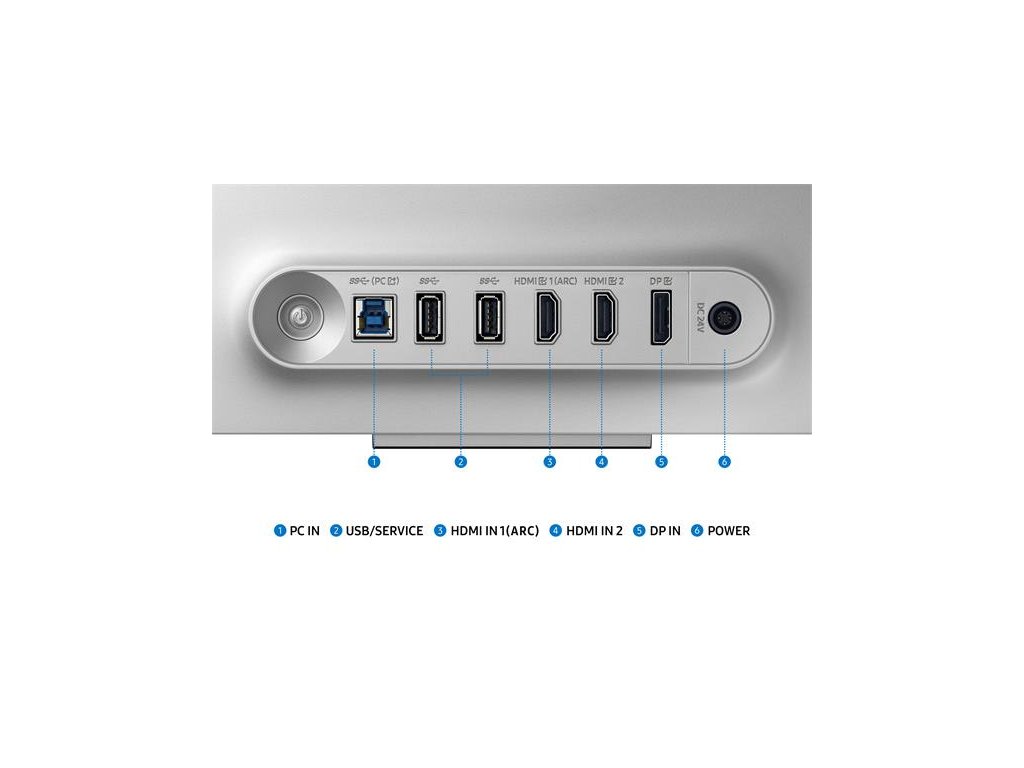

Interface
Wireless Display Yes
PC Max Resolution 1920x1080 | 60 Hz
Type of Wireless Input WiFi
# of D-sub Input N/A
PC Max Resolution N/A | N/A
Version of HDCP N/A
# of DVI Input N/A
PC Max Resolution N/A | N/A
Version of HDCP N/A
# of Displayport Input 1
PC Max Resolution 3840x2160 | 240 Hz
Version of Displayport Input 1.4
Version of HDCP 2.2
# of HDMI Input 2
PC Max Resolution 3840x2160 | 240 Hz
Version of HDMI Input 2.1
MHL Support Port No
Version of HDCP 2.2
# of Micro HDMI Input N/A
Version of Micro HDMI Input N/A
Version of HDCP N/A
# of USB Port 2
Version of USB Hub 3.2 Gen1
# of USB Type-C Downstream Port N/A
Version N/A
# of Thunderbolt Downstream Port (Daisy chain) N/A
Charging Power N/A
# of USB-B Upstream Port 1
# of USB-C Upstream Port(ONLY DATA) N/A
# of USB Type-C Port Input (Upstream/DP Alt Mode) N/A
Charging Power N/A
Version of HDCP N/A
# of Mini-Displayport Input N/A
Version of Mini-Displayport Input N/A
Version of HDCP N/A
# of Displayport Output N/A
Version of Displayport Output N/A
# of LAN Port Input N/A
Version of LAN N/A
# of Thunderbolt Input (Upstream/DP Alt Mode) N/A
Version of Thunderbolt N/A
Charging Power N/A
Version of HDCP N/A
Audio In N/A
Mic In/out N/A
Speaker Yes
Sound Output(RMS) 5W x 2
Speaker Type 2Ch
Headphone N/A
HDMI Audio Return Channel ARC
WiFi Yes (WiFi5)
Bluetooth Yes (5.2)
Built-in Camera N/A
Windows Hello Certification N/A
S/W
MCU Name RoseP
etc WorldWide
T-CON Update Yes
Core Component
DDR SDRAM Samsung
Nand Flash Memory Samsung
OneNand Flash Memory N/A
FlexOneNand Flash Memory N/A
Serial Flash Memory WINBOND
HDMI Switch N/A
Display Device Vender SDC
Operation Condition
Temperature (?) 0?~40?
Humidity (%) 10%~80%, Non-Condensing
Storage Conditions Temperature (?) -20?~45?
Storage Conditions Humidity (%) 5%~95%,, Non-Condensing
Power
Type (Internal/External) External Adaptor
Power Supply Spec. AC100-240V 50/60Hz
Power Consumption(Max) (W) N/A
Power Consumption(Typical) (W) N/A
Power Consumption (DPMS) (W) N/A
Power Consumption (Off Mode) (W) N/A
Power Consumption (Yearly) (kWh/year) N/A
Power Consumption(Rating) N/A
AC Input Power Freq. (Hz) 50/60Hz
SMPS/IP Board/Adapter DongYang E&P
Design
Color (Front) SILVER
Color (Rear) SILVER
Color (Stand Base) Silver
Stand Type HAS PIVOT
Height Adjustable Range 120.0 ±5.0
Tilt Range -2.0° (±2.0°) ~ 25.0° (±2.0°)
Swivel Range -30° (±3.0°) ~ +30° (±3.0°)
Pivot -92.0° (±2.0°) ~ +92.0° (±2.0°)
Wall Mount 100 x 100
Function Key Type (Touch/Tactile/Joystick/One-key) Joystick
Lighting Yes
Label Rating N/A
Injection Mode Normal
Front Resin N/A
Stand Packing Type ONE PACKING
Dimension (WxHxD)
Set without Stand (mm) 719.7 x 414.7 x 49.2
Set with Stand (mm) 719.7 x 584.6 x 263.5
Package Dimension (mm) 815 x 200 x 530
Stand Dim (WxD)
Stand (Basic) 296.1 x 263.5
Stand (Minimum) N/A
Weight
Set Weight without Stand (kg) 5.3
Set Weight with Stand (kg) 8.4
Package Weight (kg) 10.9
Accessory
D-Sub Cable N/A
DVI Cable N/A
HDMI Cable Yes
HDMI to DVI Cable N/A
Display Port Cable Yes
USB A To B N/A
USB Type-C Cable N/A
USB Type-C to Type-A Gender Cable N/A
Thunderbolt Cable N/A
HDMI to Micro HDMI Cable N/A
Mini-Displayport to Display Port Cable N/A
Camera N/A
External Adapter Normal
Power Cable 1.5 m
Clean Cloth N/A
Install CD N/A
Manual Book N/A
QSG Yes
Warranty Card Yes
Remote Controller Yes
Remote Controller Model TM2360E
Batteries (for Remote Control) N/A
E-Manual Yes
Pogo Gender N/A
Zigbee / Thread Module N/A
Certification
Energystar N/A
TCO Certified N/A
EPEAT N/A
TUV Yes
GS N/A
Low Blue Light Yes
Flicker Free Yes
Intelligent Eye Care N/A
Eye comfort 1000R N/A
Product Carbon Footprint N/A
UL Glare free Yes
Pantone Validated N/A
VESA CMR N/A
Eco
Energy Efficiency Class N/A
Recycled Plastic Yes
Software Support
Security Update Period (At least 5 years) N/A
[SMART] Video / Audio
Expert Calibration N/A
Smart Calibration Basic
AI Upscale Yes
Dolby Decoder MS12 2ch
Q-Symphony N/A
360 Audio Yes
Active Voice Amplifier Pro Yes
Adaptive Sound Adaptive Sound Pro
Multiroom Link Yes
[SMART] Smart Service
Smart Type Smart
Operating System Tizen™
Bixby Yes
Far-Field Voice Interaction Yes
Built-in Voice Assistant Alexa (GB, DE, FR, IT, ES, AT, IE)
TV Plus Yes (GB, FR, DE, IT, ES, CH, AT, NL, SE, NO, DK, FI, PT, IE, BE, LU)
Web Browser Yes
SmartThings Hub / Matter Hub / IoT-Sensor Funtionality Yes
Samsung Health Yes (GB, IE Only)
Universal Guide Yes (GB, FR, DE, IT, ES)
Media Home Yes
3rd party Service Certification / Agreement Yes
[SMART] Smart Feature
Multi Device Experience Mobile to Screen, Screen initiate mirroring, Sound Mirroring, Wireless On, Tap View
TV Access Yes
Multi View upto 2 videos
External Source Support 2
My Contents Yes
Flex Move Screen N/A
Workspace N/A
Easy Setup Yes
Chat Togethter N/A
NFT Nifty Gateway
ConnecTime N/A
ScreenVitals N/A
Buds Auto switch Yes
Daily+ Yes
Workout Tracker Yes
Multi Control Yes
Now+ Now+
Knox Vault N/A
9:16 Screen Support Yes
DPMS Yes
Accessibility - Voice Guide Yes
Accessibility - Low Vision Support Enlgarge, High Contrast, SeeColors, Color Inversion, Grayscale, Picture Off
Accessibility - Hearing Impaired Support Multi-output Audio, Sign Language Zoom
Accessibility - Motor Impaired Support Slow Button Repeat
Caption (Subtitle) Yes
ConnectShare™ Yes
EPG Yes
MBR Support Yes
Localization
AoT N/A
Local IoT Support N/A
