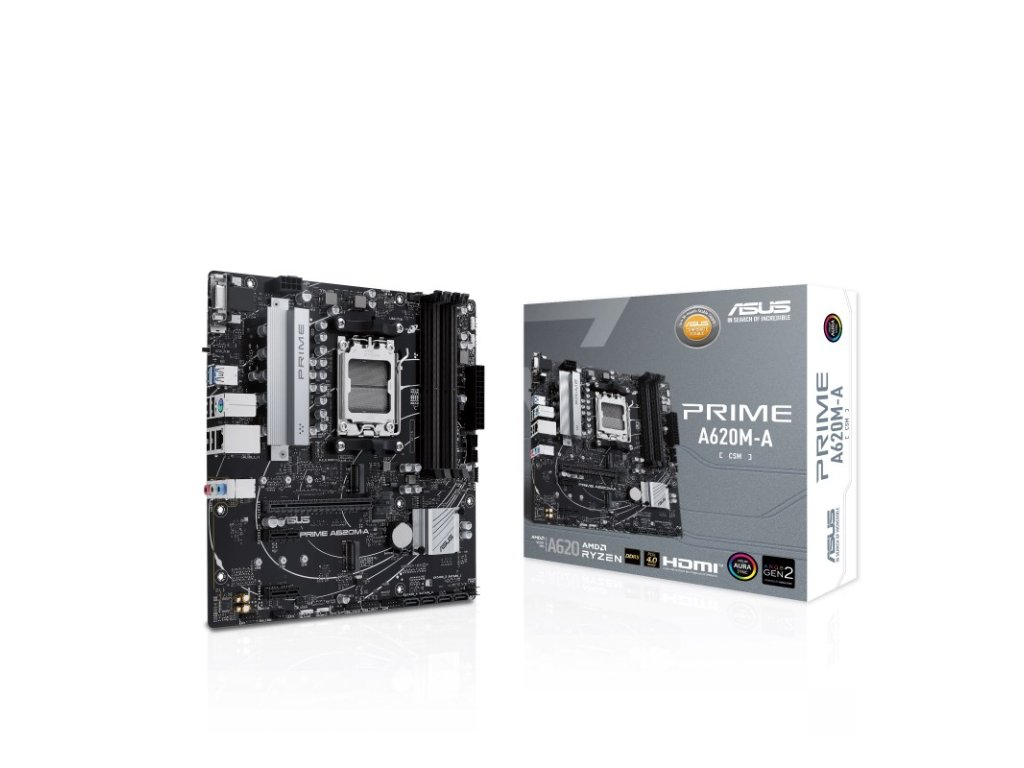

ASUS PRIME A620M-A-CSM soc.AM5 A620 DDR5 mATX M.2 D-Sub HDMI DP

Podrobný popis

Základná doska AMD A620 vo formáte Micro-ATX, DDR5, podpora PCIe 4.0, dva M.2 sloty, DisplayPort/HDMI™/VGA, USB 3.2 Gen 1 porty, predný USB 3.2 Gen 1 Type-C®, SATA 6 Gbit/s, BIOS FlashBack™, obojsmerné potlačenie šumu pomocou umelej inteligencie, Aura Sync

Pätica AMD AM5: Pripravené pre stolové procesory AMD Ryzen™ 7000
Ultra rýchla konektivita: Podpora PCIe 4.0, dva M.2 sloty, USB 3.2 Gen 1 porty, predné USB 3.2 Gen 1 Type-C®
ASUS OptiMem II: Starostlivé smerovanie stôp a priechodiek aj optimalizácia zemniacej vrstvy pre zachovanie integrity signálu pre lep šie pretaktovanie pamäte
Komplexné chladenie: VRM chladič, PCH chladič, headery hybridných ventilátorov a Fan Xpert 2+
Osvetlenie Aura Sync RGB: Integrované adresovateľné headery 2. generácie a header Aura RGB pre RGB LED pásky, ľahko synchronizovateľné s hardvérom podporujúcim Aura Sync
Obojsmerné potlačenie šumu pomocou umelej inteligencie: Znižuje šum na pozadí z mikrofónu aj zvukového výstupu a ponúka kri štáľovo čistú komunikáciu počas hrania alebo videokonferencií

S nákupom základnej dosky ASUS CSM získavate licenciu ASUS Control Center Express (ACCE) pre jednoduchšiu správu koncových IT bodov
Pomáha optimalizovať správu IT koncových bodov, ich automatickú údržbu a bezpečné ovládanie.
Pomáha v monitorovaní a ovládaní všetkých zariadení v rámci svojich firemných sietí a zjednodušoval vzdialenú kontrolu inventára na viacerých miestach zároveň.
Umožňuje naplánovať automatické aktualizácie najnovšieho systému BIOS, softvéru a pomôcok pre všetky zariadenia mimo prevádzkovú špičku, čo zvyšuje stabilitu systému a prevádzkovú flexibilitu IT.
Bezpečne spravujte konfiguráciu koncových bodov, prístup k úložiskám a všetky svoje softvérové aplikácie tým, že umožníte vytvárať pravidlá zoskupovania na jednotlivých zariadeniach.

Špecifikácia:

CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipset
AMD A620 Chipset

Pamäť
4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Grafika
1 x DisplayPort**
1 x VGA port
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Rozširujúce sloty
AMD Ryzen™ 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD A620 Chipset
2 x PCIe 3.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Úložisko
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
AMD A620 Chipset
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
** Specifications vary by CPU types.

Ethernet
1 x Realtek 1Gb Ethernet

USB
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Porty na zadnom paneli
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port

Vnútorné konektory
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Špeciálne funkcie
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Softvérové funkcie
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
IT Management software supported
- ASUS Control Center Express(ACCE)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Správa
WOL by PME, PXE

Príslušenstvo
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x Screw package for M.2 SSD
Documentation
1 x ACC Express Activation Key Card
1 x User guide

Operačný systém
Windows® 11, Windows® 10 64-bit

Formát ATX
micro-ATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
