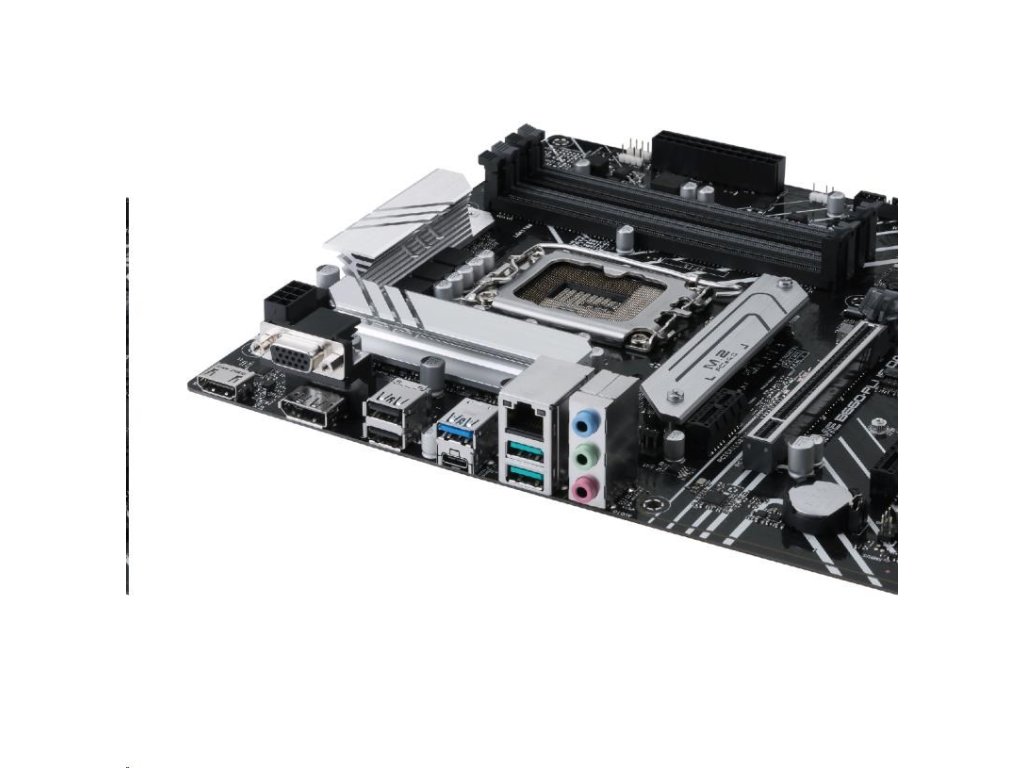

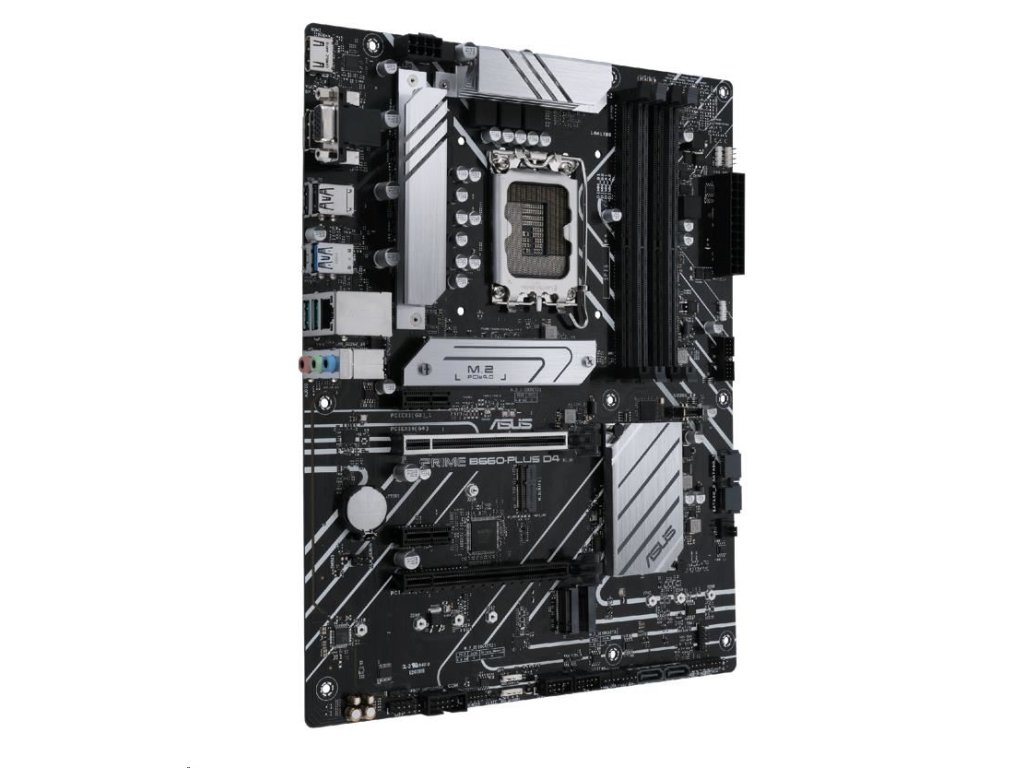

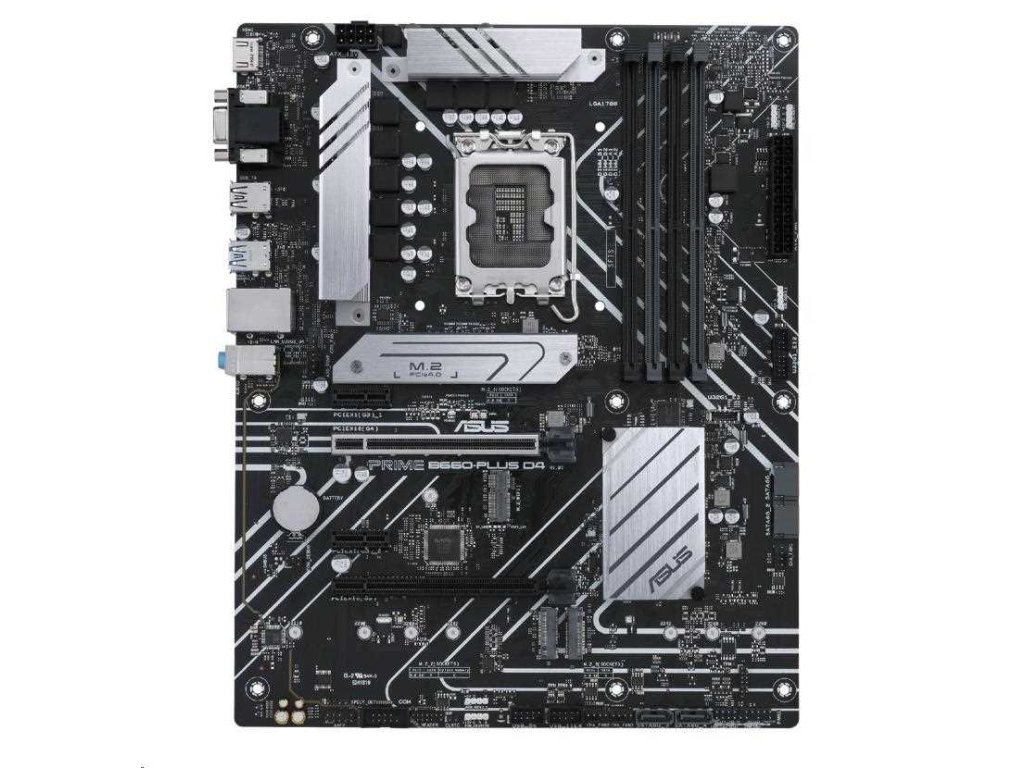

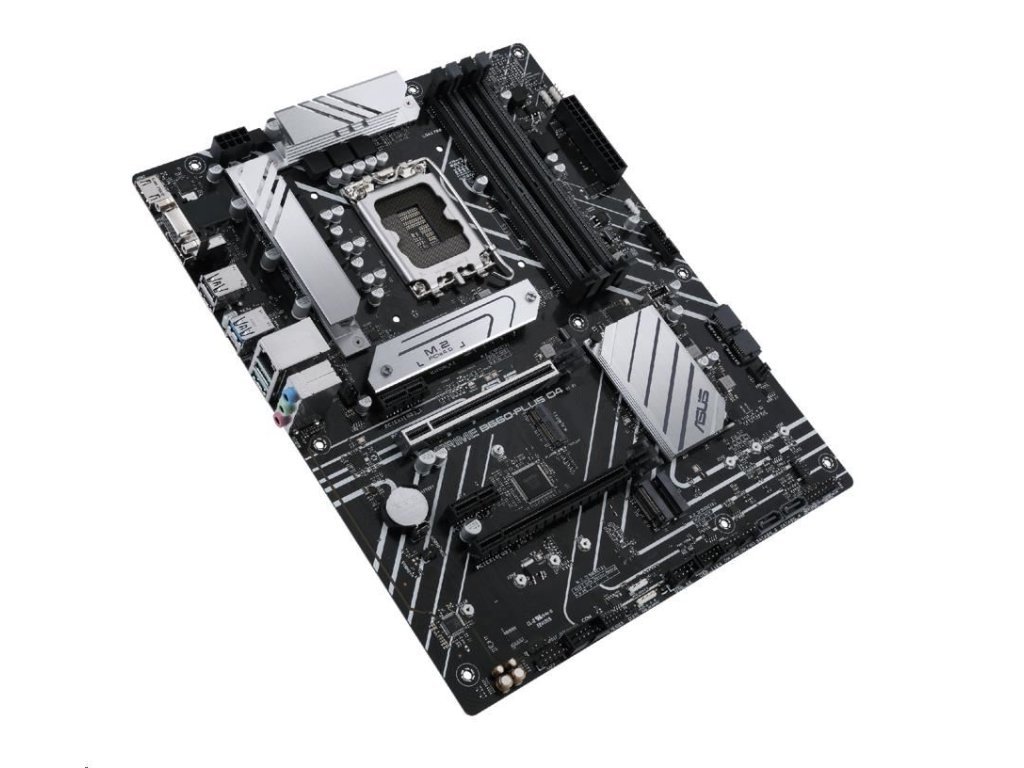

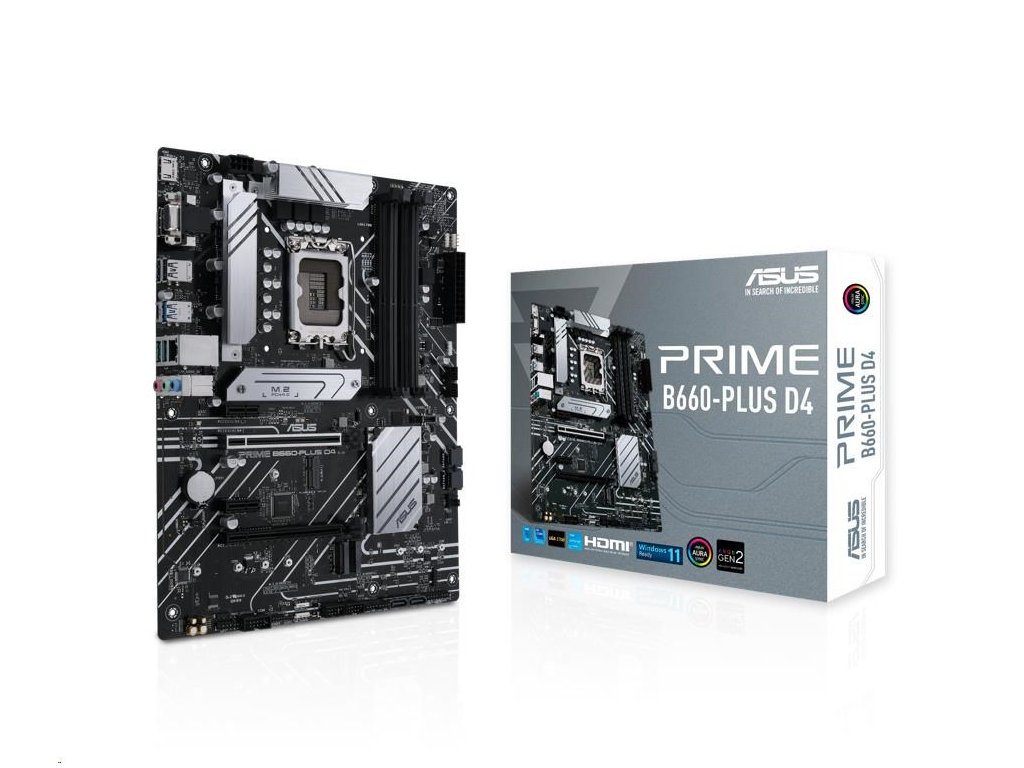

ASUS PRIME B660-PLUS D4 herná základná doska

Podrobný popis

Chipset: Intel B660 Chipset

Rozměrový formát: ATX (30.5cm x 24.4cm)
Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors
Patice procesoru: LGA 1700

Pozice na paměti: 4 x DIMM, Dual Channel Memory Architecture
Podpora pro paměti: DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: XMP, Non-ECC

Grafická karta: (na základě procesoru)

• 1 x DisplayPort
• 1 x D-Sub port
• 1 x HDMI port

Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC

Síťová karta: 1 x Realtek 2.5Gb Ethernet port

Rozšiřující sloty:

• 1 x PCIe 4.0 x16 slot
• 1 x PCIe 3.0 x16 slot (supports x4 mode)
• 2 x PCIe 3.0 x1 slots

RAID řadič: RAID 0/1/5/10

SATA: 4 x SATA 6Gb/s ports

M.2: 3 x M.2 slots (Key M)

USB:

• Interní:
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Externí:
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 1 x USB 3.2 Gen 1 port (1 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)

Interní porty:

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 2 x AURA RGB headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x M.2 slot (Key E)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1pin)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thunderbolt header

Externí porty:

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 1 x USB 3.2 Gen 1 port (1 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x D-Sub port
• 1 x HDMI port
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks

BIOS: UEFI AMI BIOS, 128 Mb Flash ROM
