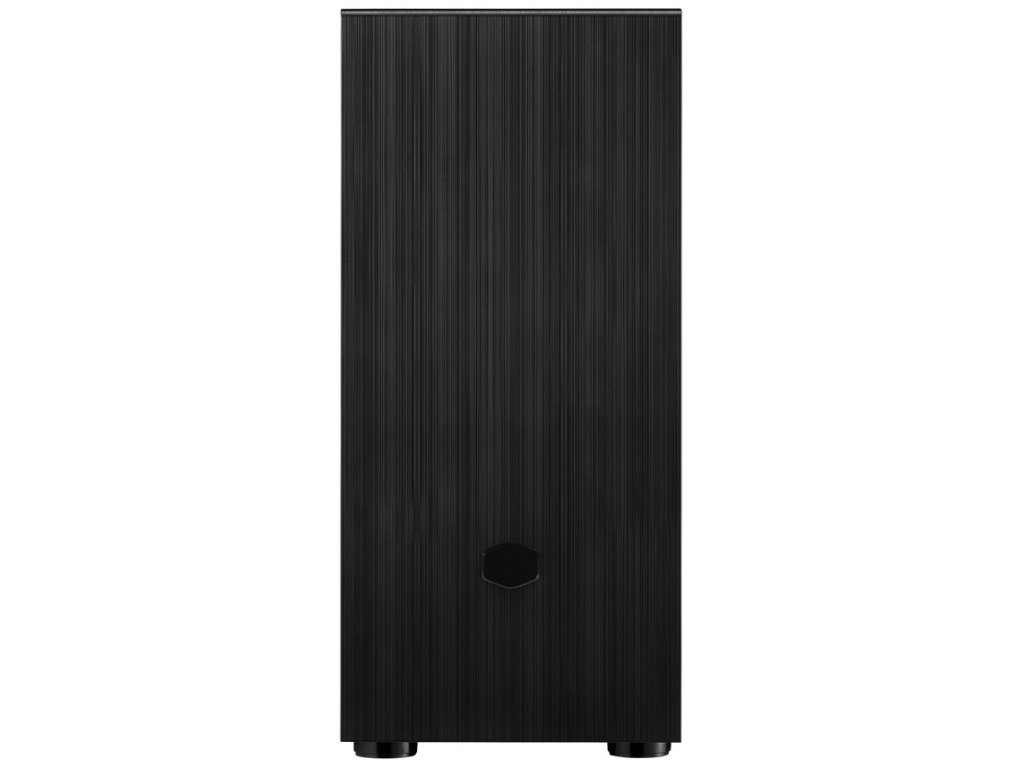

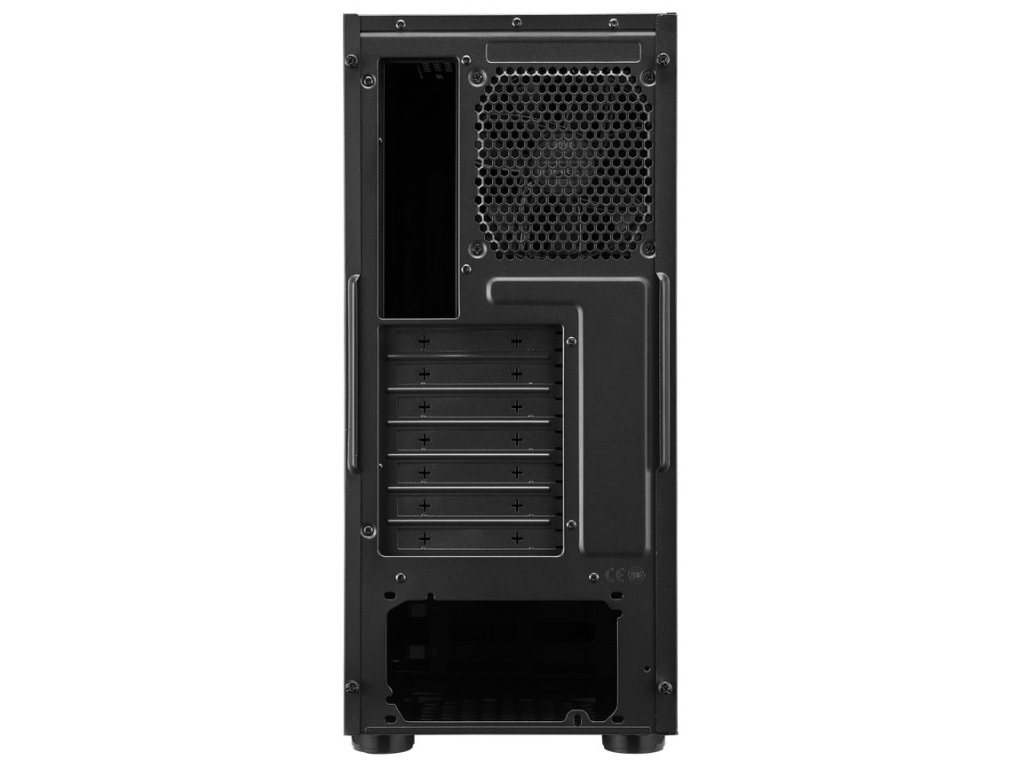

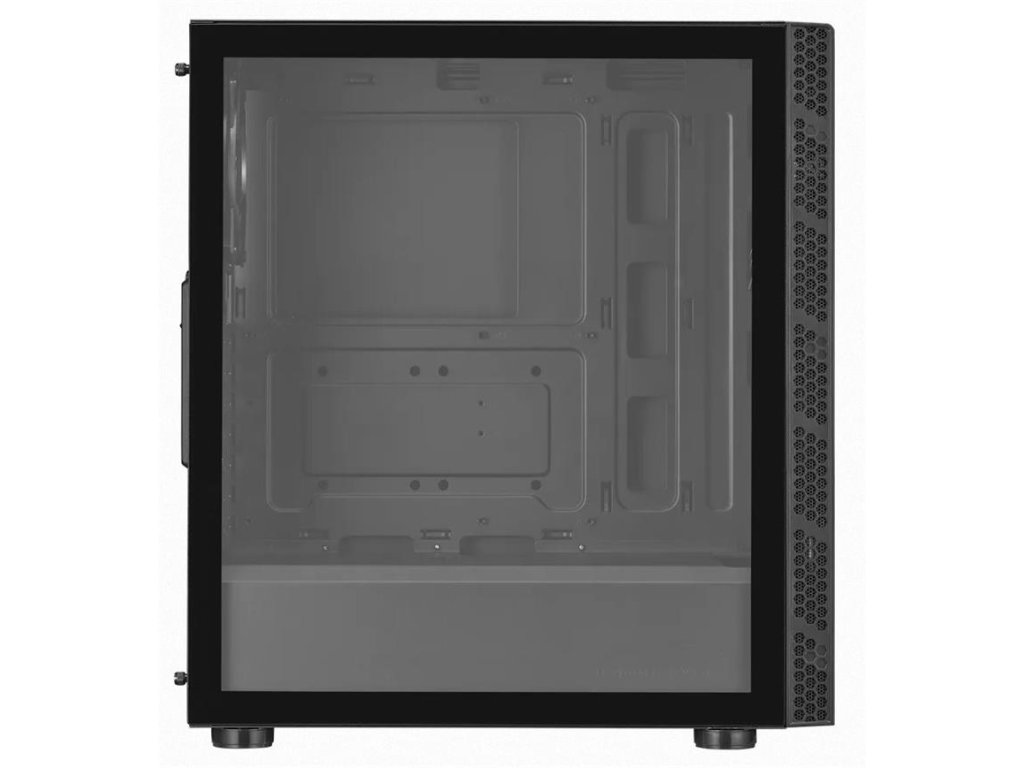

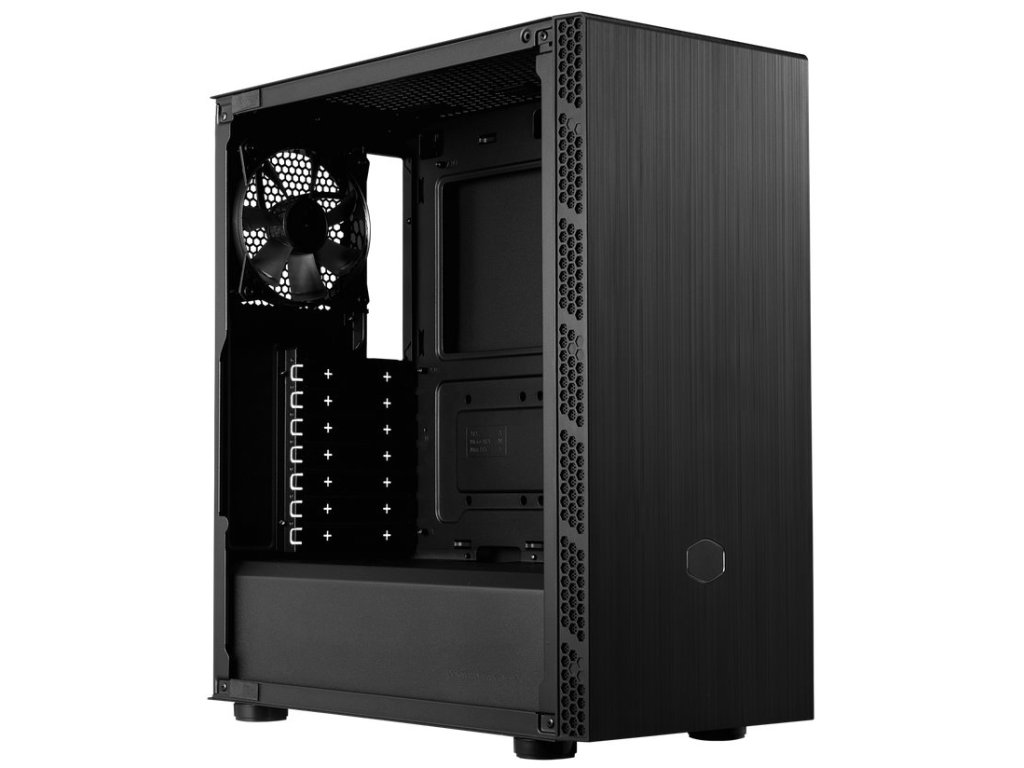

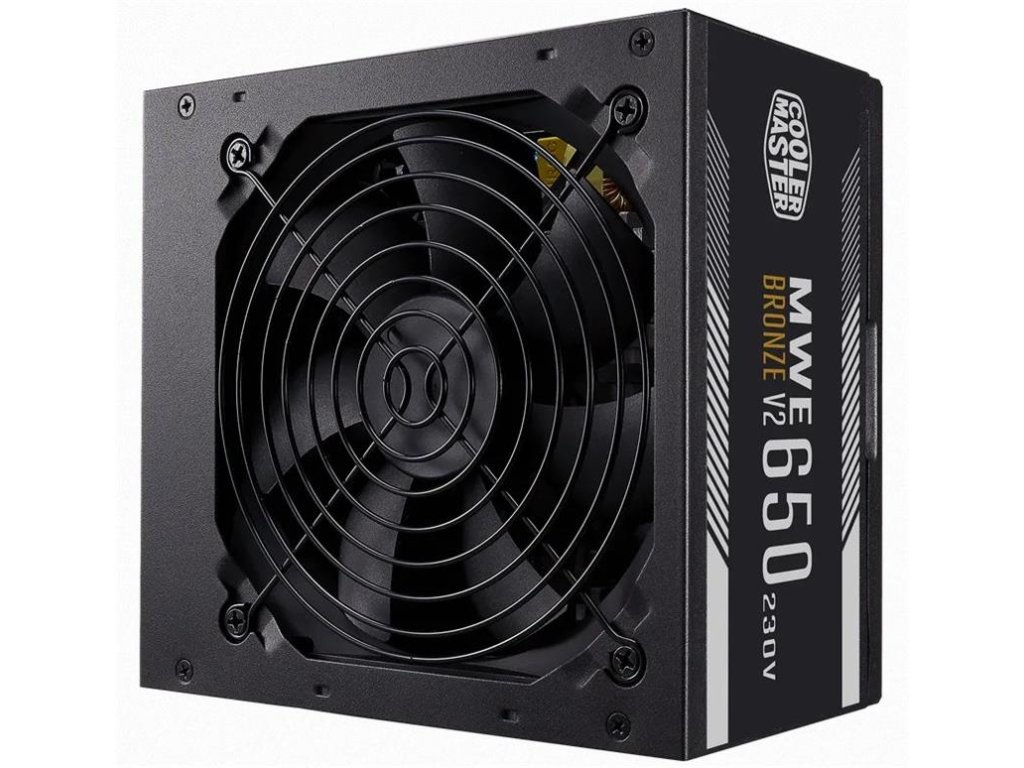

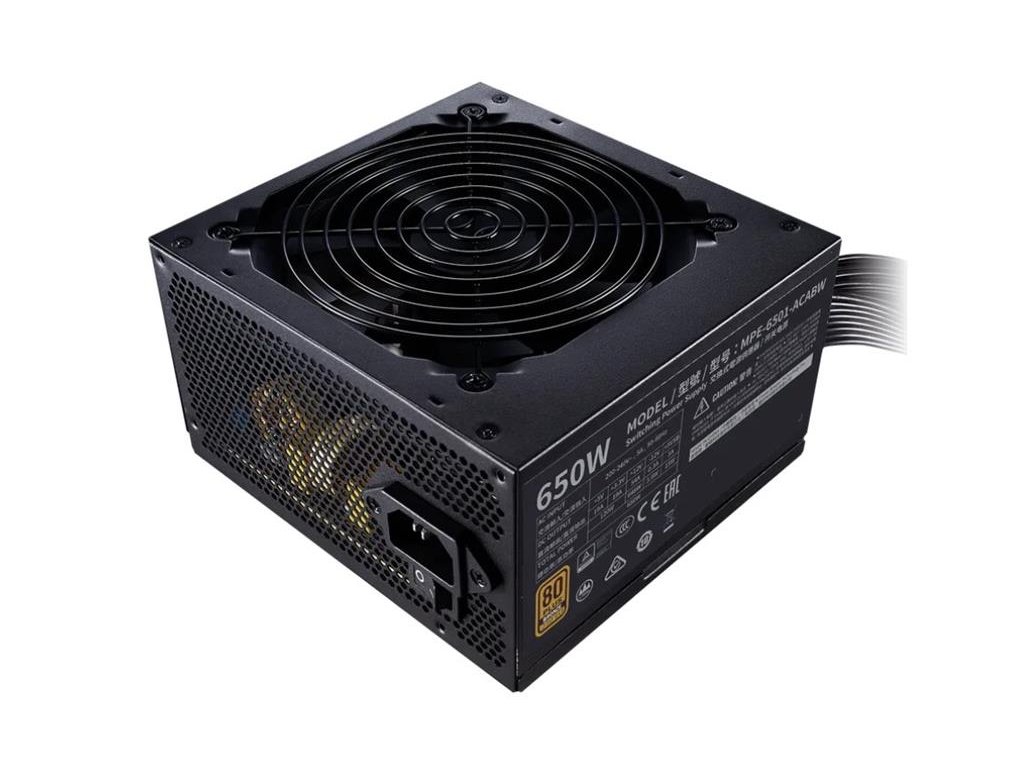

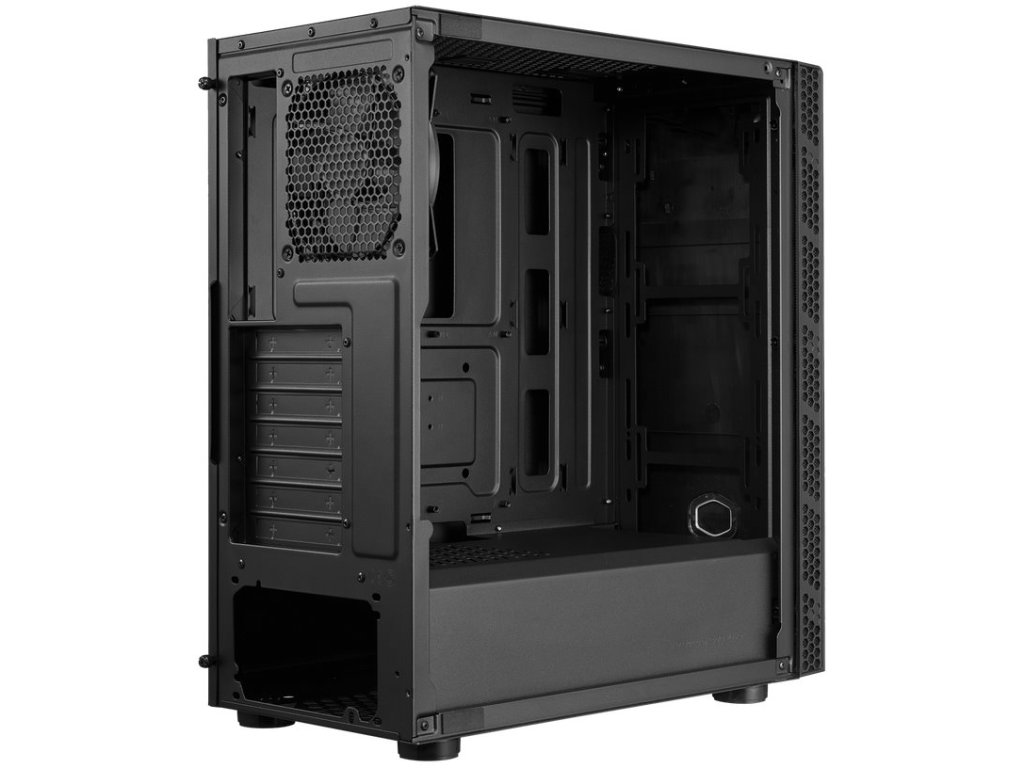

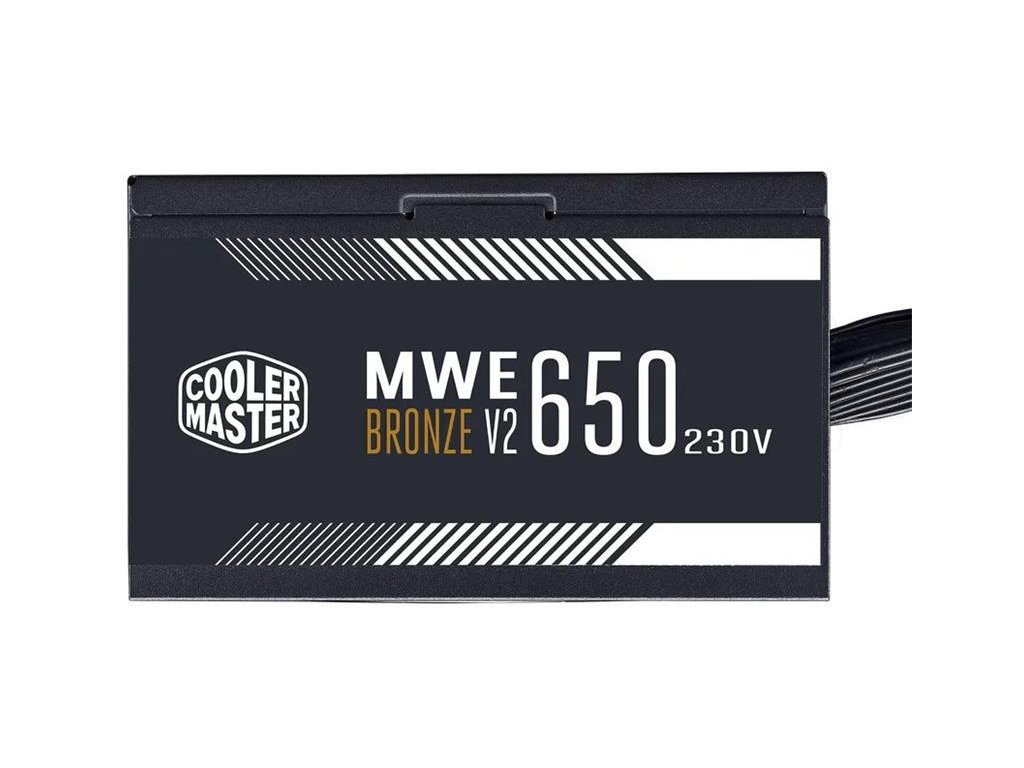

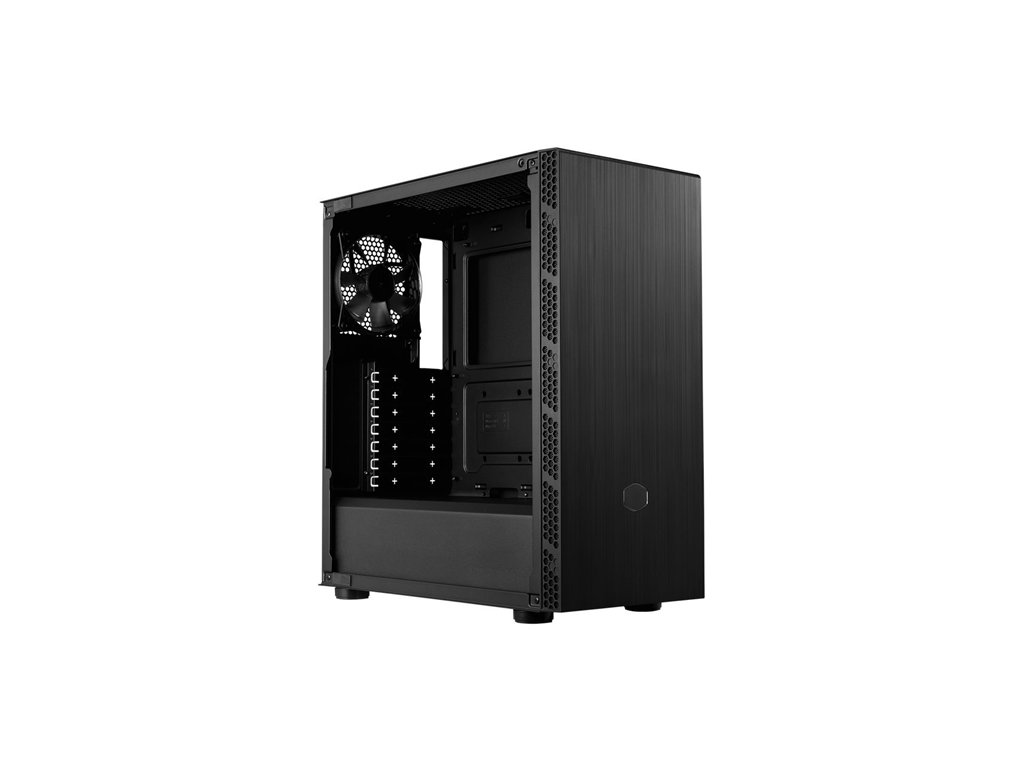

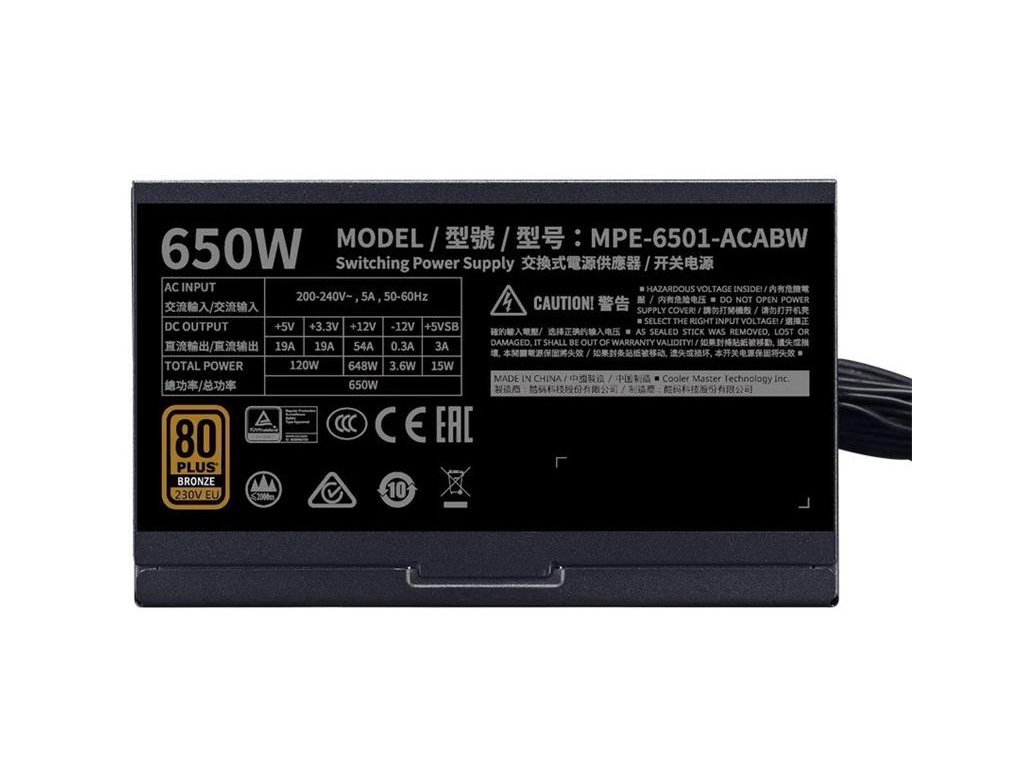

COOLER MASTER case MasterBox MB600L V2 Tempered Glass + 650W PSU Bronze 80+ MPE-6501-ACABW-BCP, ATX, Mid Tower

Podrobný popis

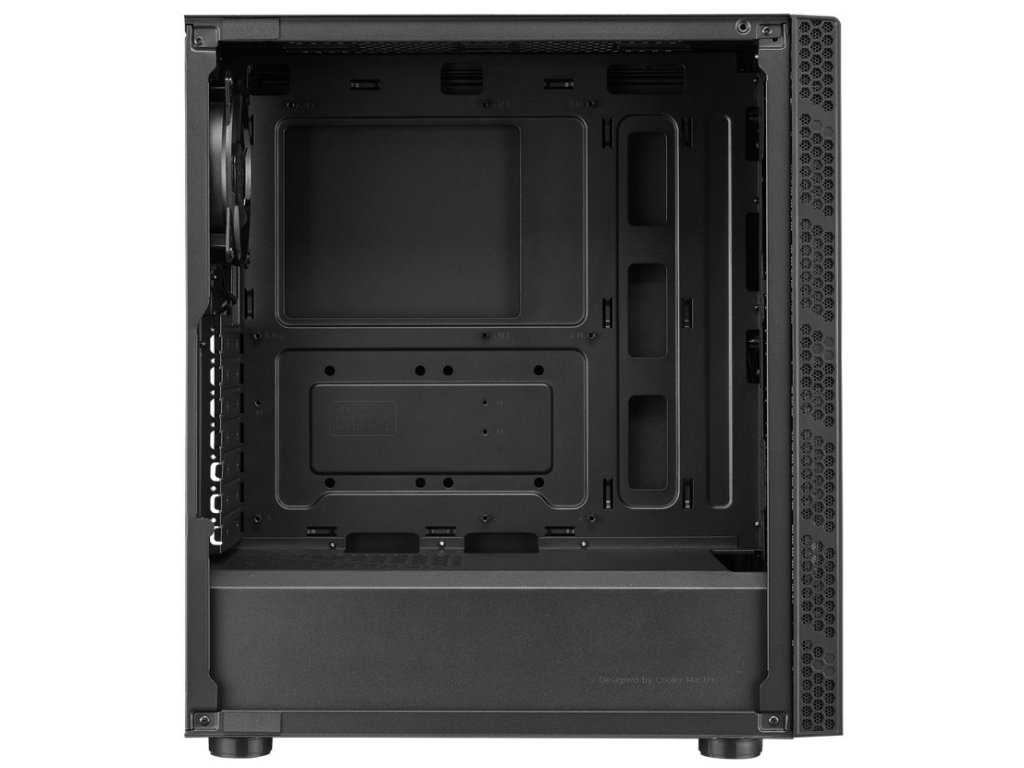

MasterBox MB600L V2 Sensible By Design Brushed Front Panel Hexagon Gleam Mesh Intakes With/Without ODD Support Versatile Cooling Options Breathable Power Supply Shroud Room For Upgrades Removable HDD Cage Model Number MB600L2-KGNN-S00 (w/o ODD TG), MB600L2-KNNN-S00 (w/o ODD Steel), MB600L2-KG5N-S00 (w/ ODD TG), MB600L2-KN5N-S00 (w/ ODD Steel) Series MasterBox Series Size Mid Tower Color(s) Black Materials Steel, Plastic, Tempered Glass Dimensions (L x W x H) 405.5x204x455.3mm (incl. Protrusions) (MB600L2-K*NN-S00), 400x204x455.3mm (excl. Protrusions) (MB600L2-K*NN-S00), 460.5x204x455.3mm (incl. Protrusions) (MB600L2-K*5N-S00), 455x204x455.3mm (excl. Protrusions) (MB600L2-K*5N-S00) Volume 37.15L (MB600L2-K*NN-S00) (exlc. Protrusions), 42.26L (MB600L2-K*5N-S00) (exlc. Protrusions) Motherboard Support Mini ITX, Micro ATX, ATX Expansion Slots 7 5.25" Drive Bays 0 (MB600L2-K*NN-S00), 1 (MB600L2-K*5N-S00) 2.5" / 3.5" Drive Bays (Combo) 2 2.5" Drive Bays 2 I/O Panel 2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic) Pre-installed Fans - Top N/A Pre-installed Fans - Front N/A Pre-installed Fans - Rear 1x 120mm Fan Support - Top 2x 120/140mm Fan Support - Front 3x 120mm, 2x 140mm, 3x 120mm (remove ODD bracket) (MB600L2-K*5N-S00) Fan Support - Rear 1x 120mm Radiator Support - Top 120mm, 240mm, (RAM height limit 32mm; install RAM first, then install radiator) Radiator Support - Front 120mm, 140mm, 240mm, 280mm, 360mm (remove & reinstall ODD bracket to mount 360mm radiator (MB600L2-K*5N-S00) Radiator Support - Rear 120mm Clearance - CPU Cooler 161mm Clearance - PSU 160mm (MB600L2-K*NN-S00), 180mm (MB600L2-K*5N-S00) Clearance - GFX 350mm (w/o front fans & radiator) (MB600L2-K*NN-S00), 400mm (w/o front fans & radiator) (MB600L2-K*5N-S00) Cable Routing 18.5mm Dust Filters Front, Top, Bottom Power Supply Support Bottom Mount, ATX Warranty 2 years \80 Plus Bronze Certified 230V Power Supply Unit MWE 650 Bronze - V2 230V DC-to-DC + LLC Circuit Design High Temperature Resistance Peak Power Tolerance 80 PLUS Bronze 230V EU Certified Durable, Reliable, and Safe ErP 2014 Lot 3Yes PFCActive PFC Input Frequency50-60Hz ATX 24 Pin Connectors1 EPS 4+4 Pin Connectors1 EPS 8 Pin Connector1 Fan Size120mm Category500 to 750W Power Good Signal100 - 500 ms MTBF>100,000 Hours ModularNon Modular Fan BearingHDB 80 PlusBronze PCI-e 6+2 Pin Connectors4 SATA Connectors6 Efficiency88% Typically 80 PLUS Rating80 PLUS Bronze EU 230V ATX VersionATX 12V V2.52 SeriesMWE Bronze Series Peripheral 4 Pin Connectors3 ProtectionsOVP ProtectionsOPP ProtectionsSCP Dimensions (L x W x H)140 x 150 x 86 mm Hold Up Time>14ms at 100% Full Load@230Vac ProtectionsUVP ProtectionsOTP Fan Speed2400 RPM RegulatoryCCC Input Current10-5A Input Voltage200-240Vac RegulatoryCE RegulatoryTUV-RH RegulatoryRCM Noise Level @ 20%16.54 dBA RegulatoryEAC RegulatorycTUVus RegulatoryFCC RegulatoryBSMI RegulatoryKC RegulatoryCB Noise Level @ 50%26.5 dBA Noise Level @ 100%42.5 dBA ModelMPE-6501-ACABW-B
