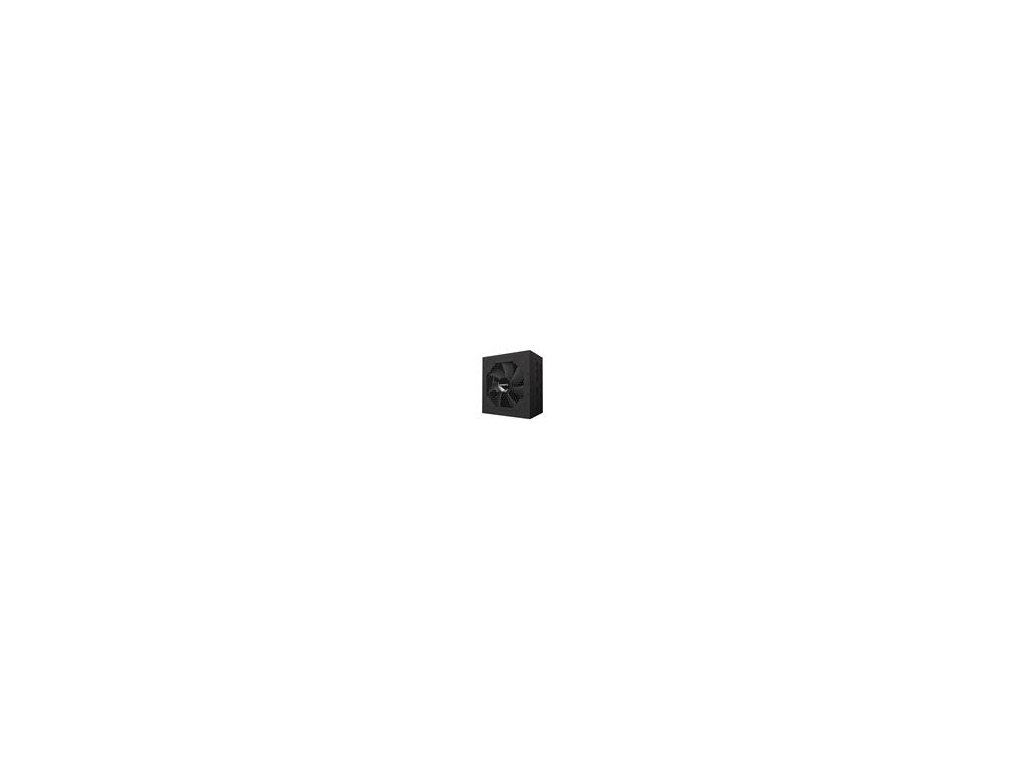

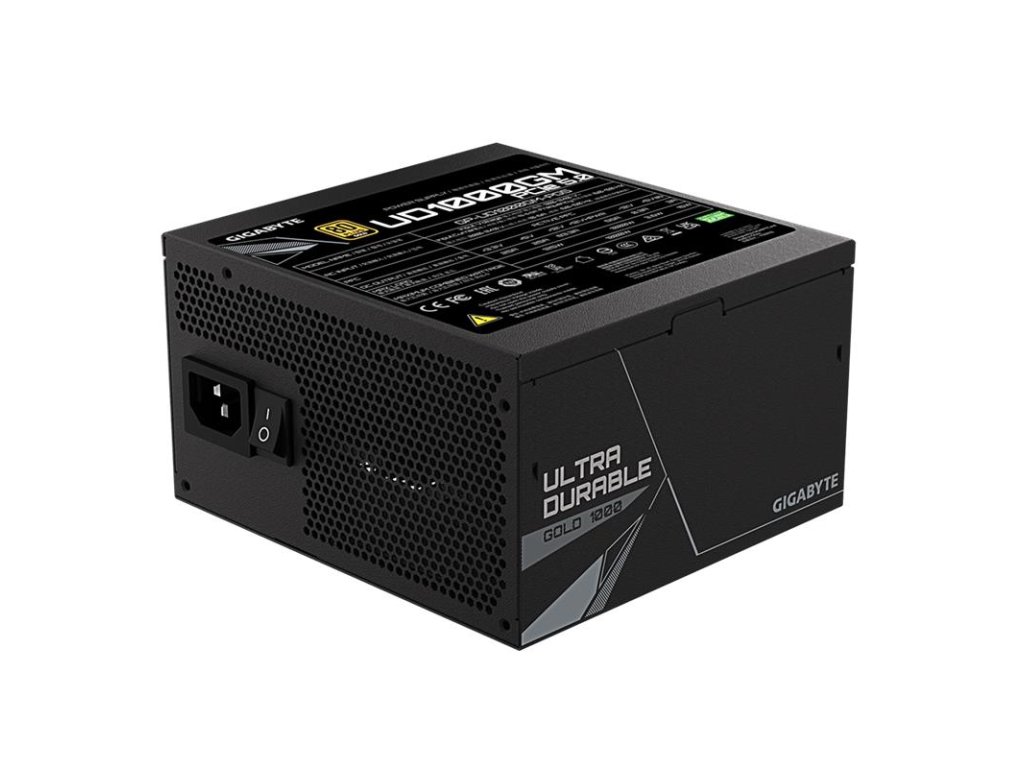

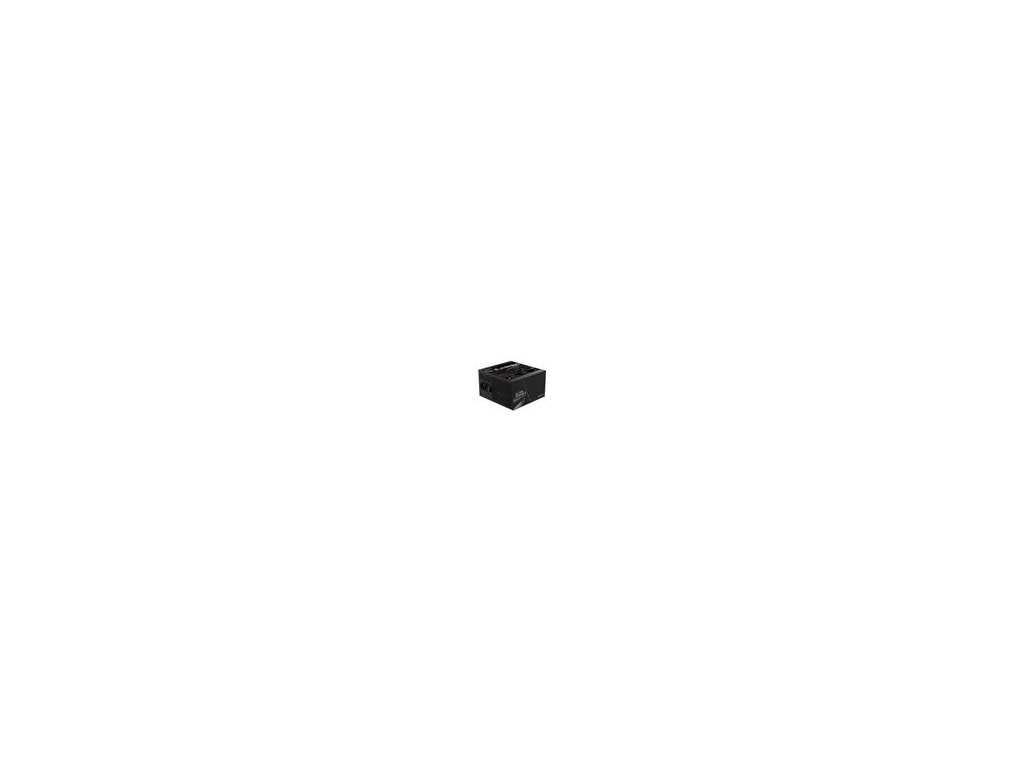

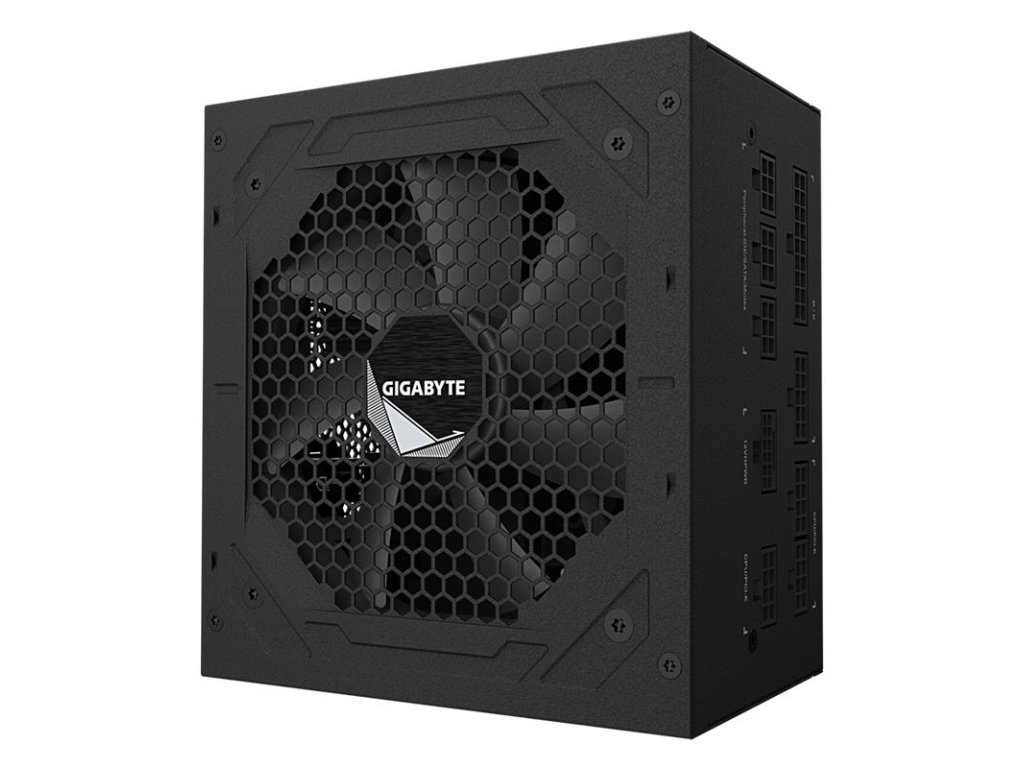

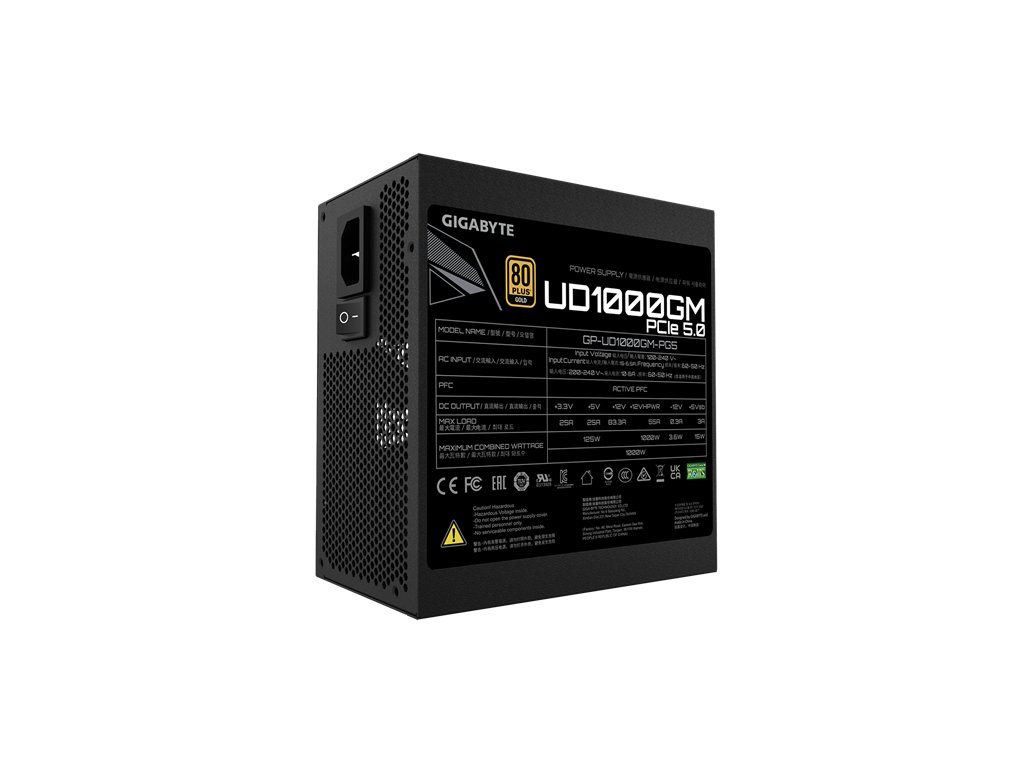

Gigabyte UD1000GM PG5 1000W 80+ GOLD Modular
Kód: GP-UD1000GM PG5Podrobný popis

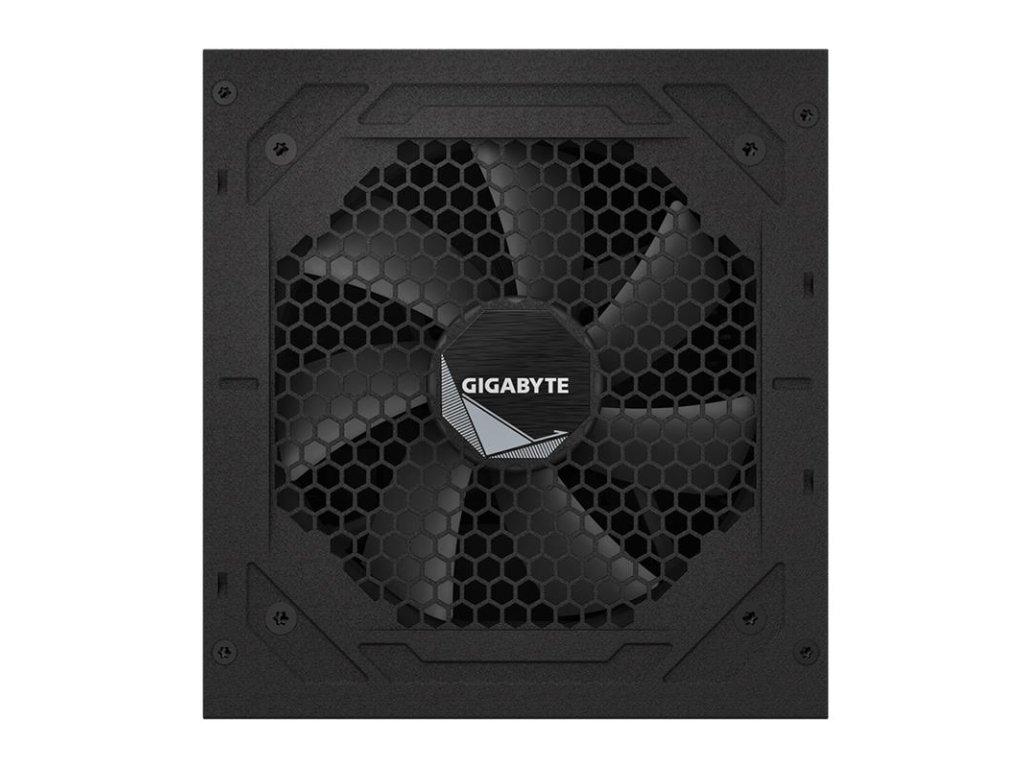

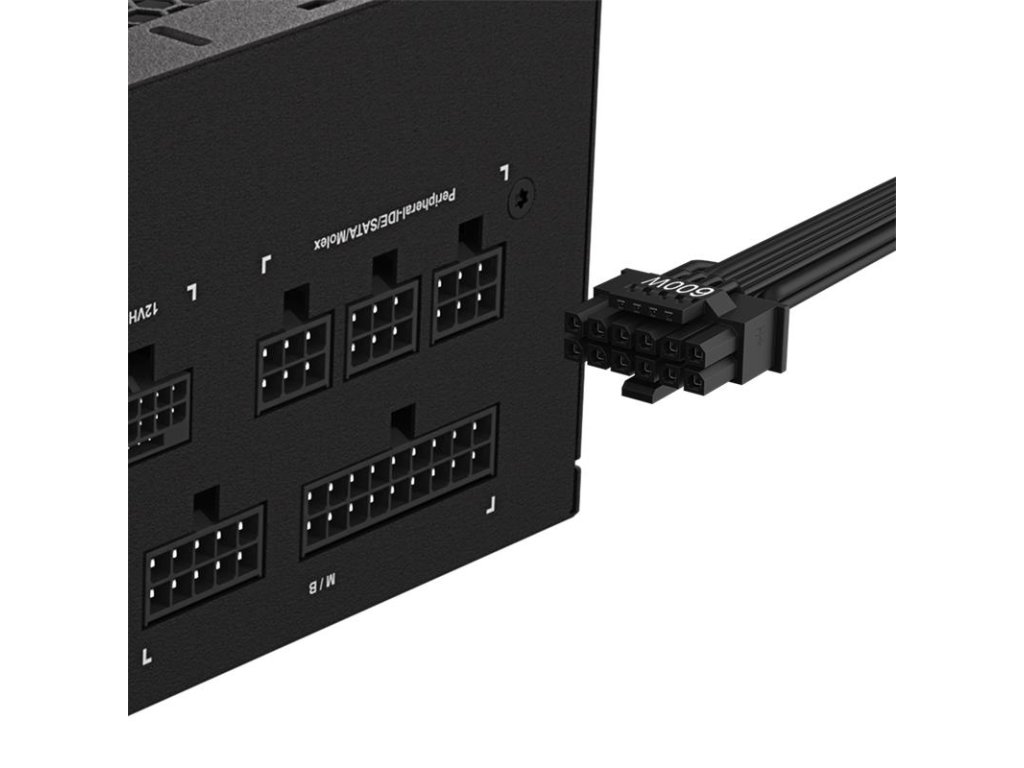

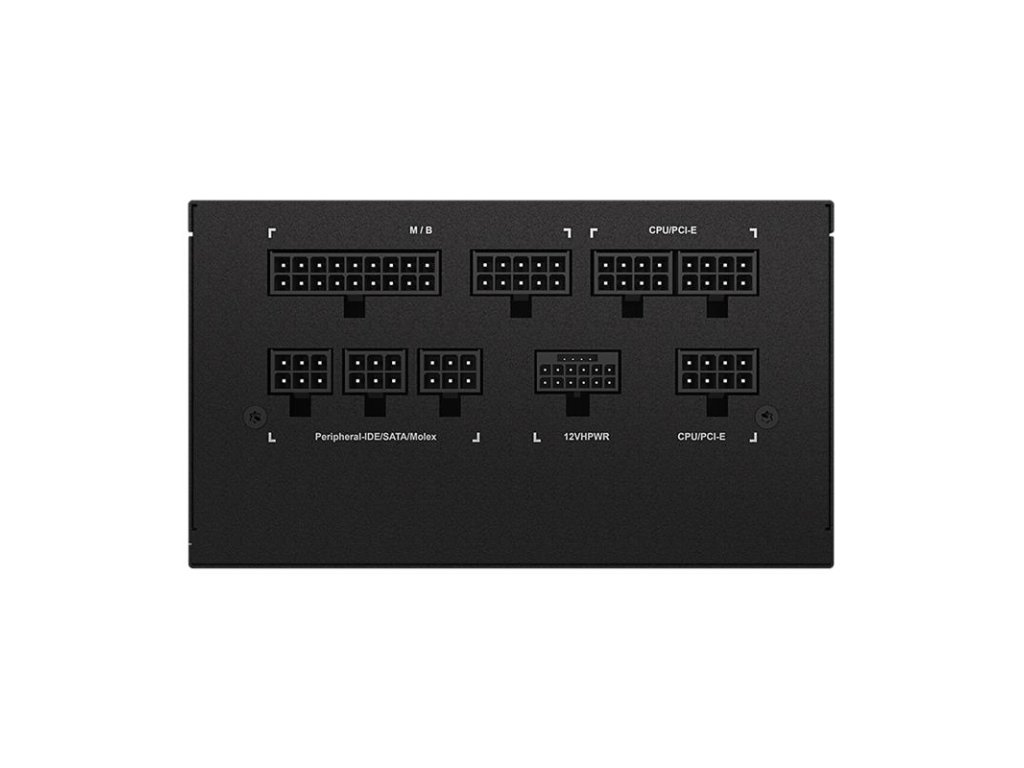

KEY FEATURE Ultra Durable Main Japanese capacitors Enhanced thermal solution 120mm smart hydraulic bearing (HYB) fan OVP/OPP/SCP/UVP/OCP/OTP protection Support PCIe Gen 5.0 graphics card High-quality native 16-pin cable supports 600W output 80 PLUS Gold certified Fully modular design Compact design 10 years warranty (Adjusted according to different regions) UD1000GM PG5 rev. 2.0 Key Features Specification Support News & Awards Gallery Buy Model GP-UD1000GM PG5 Type Intel Form Factor ATX 12V PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 15-6.5A Input Frequency 60-50 Hz Output Capacity 1000W Dimension 150 x 140 x 86 mm Fan Type 120mm Hydraulic Bearing(HYB)fan 80 PLUS Gold Efficiency 90% at typical load MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All black Connectors ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1 PCI-e 16 Pin x 1: 700mm*1 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1Dodatočné parametre
| Kategória: | Zdroje |
|---|---|
| Záruka: | 3720 dní |
| Hmotnosť: | 2.86 kg |
