Seasonic PRIME CONNECT GOLD 750W, modular

Podrobný popis

SPECIAL FEATURES - POWER SUPPLY Seasonic PRIME 750 W 80 PLUS® Gold certified power supply Top-Quality 135 mm Fluid Dynamic Bearing Fan Premium Hybrid Fan Control SPECIAL FEATURES - SEASONIC CONNECT BACKPLANE Mounted with Magnets Minimizes the number of cables needed inside the case Maximizes airflow ATX 12 V Fully Modular 80 PLUS Gold Certified 10 Years Warranty Dimensions: PSU: 140 mm (L) x 150 mm (W) x 86 mm (H) CONNECT MODULE: 330 mm (L) x 64 mm (W) x 21 mm (H) REQUIRED SPACE: 330 mm (L) x 65 mm (W) x 28 mm (H) SSR-750FA Technical Specifications 80PLUS® Gold Cybenetics Efficiency Level Gold (See report) Cybenetics Noise Level Lambda Standard+ (See report) Form Factor Intel ATX 12 V Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H) Fan Information Fan Size 135 mm Fan Control Premium Hybrid Fan Control Fan Bearing Fluid Dynamic Bearing Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH Cable Information Modularity Fully Modular Cable type Flat black cables Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) MTBF @ 25 °C, excl. fan 150,000 hours AC Input Full Range Protection OPP, OVP, UVP, OCP, OTP, SCP Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH Warranty 10 Years

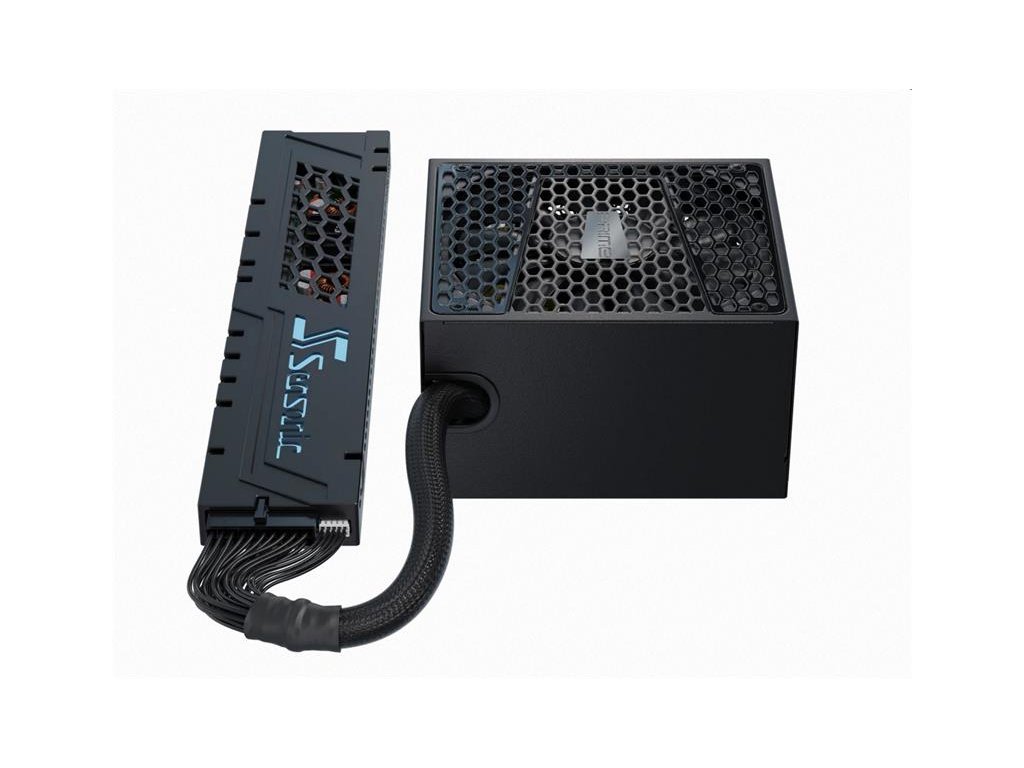

Seasonic CONNECT The development of the Seasonic CONNECT is the result of continued interest from our users and partners during the past few years. While fully modular power supplies helped to alleviate the need to plug in cables that were not necessary for some builds, our engineers have continuously been searching for a better and cleaner way of power supply cable management. Eventually, they came up with another possibility to improve the overall functionality and look of PC systems. This is how the SCMD, introduced at Computex 2018, was born, which ultimately has further evolved to become the upcoming Seasonic CONNECT. ATX 12 V Fully Modular 80 PLUS Gold Certified 10 Years Warranty Dimensions: PSU: 140 mm (L) x 150 mm (W) x 86 mm (H) CONNECT MODULE: 330 mm (L) x 64 mm (W) x 21 mm (H) REQUIRED SPACE: 330 mm (L) x 65 mm (W) x 28 mm (H)

INSTALLATION GUIDE !
